Description

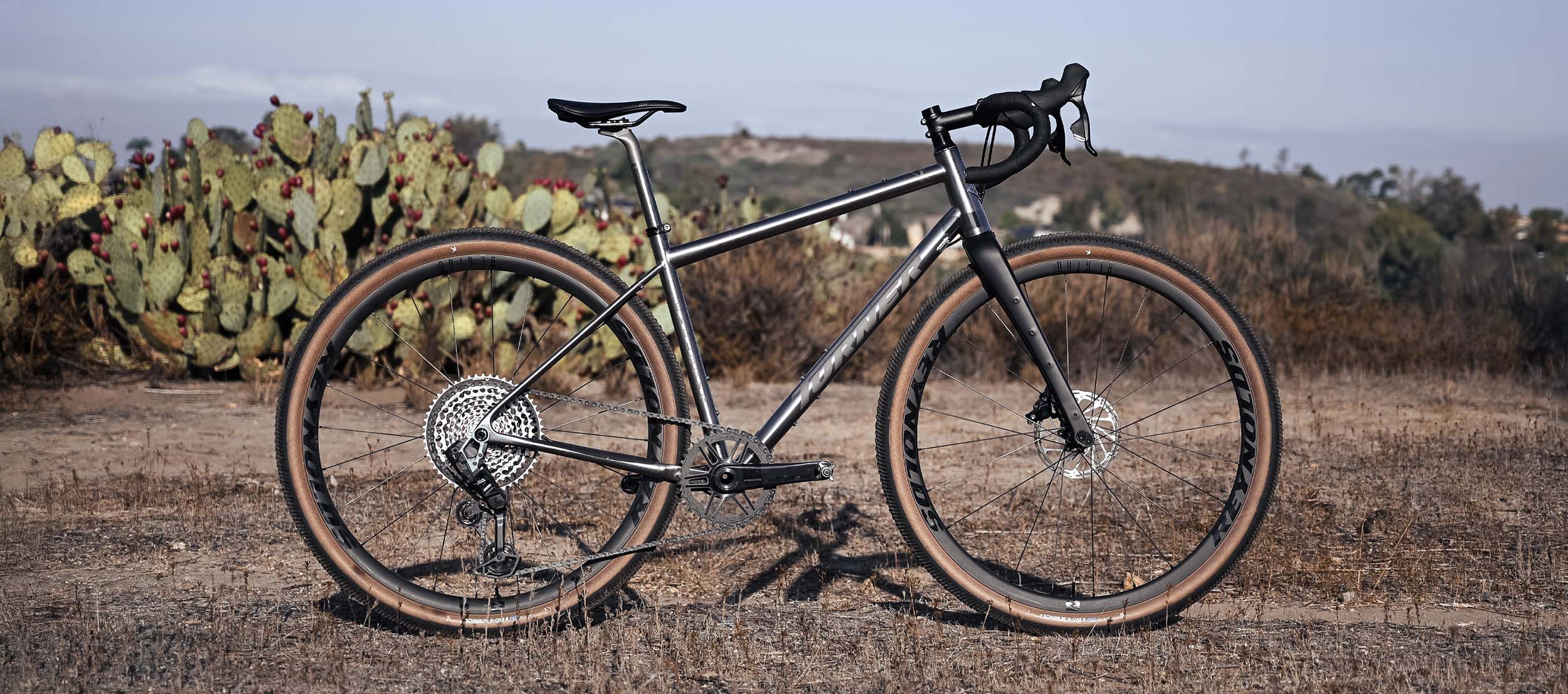

titanium gravel bike frame china Cyclosys TiStandard Features Included in Price: ENVE Adventure fork Cane Creek headset Logo seat post clamp, 7075 axle, forged UDH Assorted cable routing hardware 700x56 tire clearance Frame & Construction Material: Double butted top, down, and seat tubes; single butted chainstays Chainstays: Radically tapered with massive BB junction for maximum stiffness Seat Tube: Custom shaped for added stiffness near the bottom bracket Precision Engineering Head Tube: CNC
Standard Features
Included in Price:
- ENVE Adventure fork
-Cane Creek headset
-Logo seat post clamp, 7075 axle, forged UDH
-Assorted cable routing hardware
- 700x56 tire clearance
Frame & Construction
- Material: Double-butted top, down, and seat tubes; single-butted chainstays
- Chainstays: Radically tapered with massive BB junction for maximum stiffness
- Seat Tube: Custom-shaped for added stiffness near the bottom bracket
Precision Engineering
- Head Tube: CNC tapered, size-specific, internally relieved for weight savings
- Bottom Bracket: Threaded T47x68mm, large junction for added stiffness
- Dropouts: 3D printed for Universal Derailleur Hanger and 160mm flat mount caliper bolts
- Internal Cable Routing: Supports mechanical & electronic shifting, 1x or 2x drivetrains, and 2X with 27.2mm dropper
Mounting & Compatibility
- 3 Bottle Mounts: Seat tube, down tube, under downtube triple (all welded for durability)
- Top Tube Bosses: Securely welded lunch box mounts
- Rear Triangle: Stealth threaded fender or rack mounts
Premium Finishing
- Matte Polished: Easy to maintain with Scotch-Brite pad
- Etched Graphics: Long-lasting, corrosion-proof design
- Bolt-On Head Badge & Full Stainless Steel Hardware
Technical Specifications
- Rear Hub: 142x12mm
- Bottom Bracket: Threaded 47mm x 68mm wide
- Seat Post: 27.2mm for added compliance and dropper post
- Derailleur Clamp: 31.8mm
- Seatpost Clamp diameter: 31.8
- Headset Bearings: Integrated (Top: 42mm x 45/45, Bottom: 52mm x 45/35)
- Tire Clearance: 29x2.2"
If you have any questions about frame geometry or drivetrain compatibility, feel free to contact [email protected]
Specifications subject to change without notice.
Geometry
| sm | md | lg | xl | |||
| horizontal tt | 540 | 560 | 580 | 600 | ||
| seat tube | 430 | 460 | 500 | 540 | ||
| seat-angle | 74.5 | 74 | 73.5 | 73.5 | ||
| head tube | 135 | 160 | 185 | 215 | ||
| head-angle | 70 | 70.5 | 70.5 | 70.5 | ||
| bb drop | 78 | 76 | 76 | 73 | ||
| chainstay | 435 | 435 | 440 | 440 | ||
| standover | 752 | 781 | 813 | 833 | ||
| reach | 385 | 393 | 400 | 414 | ||
| stack | 560 | 584 | 608 | 633 | ||
| wheelbase | 1033 | 1051 | 1072 | 1095 |
